ROXAR Rock Drill - Product Information
Roxar rock drill combines an innovative design with exclusive features. DS drifter is optimized for Dimentional Stones DrillingRoxar rock drill DS – High Performances Drifter

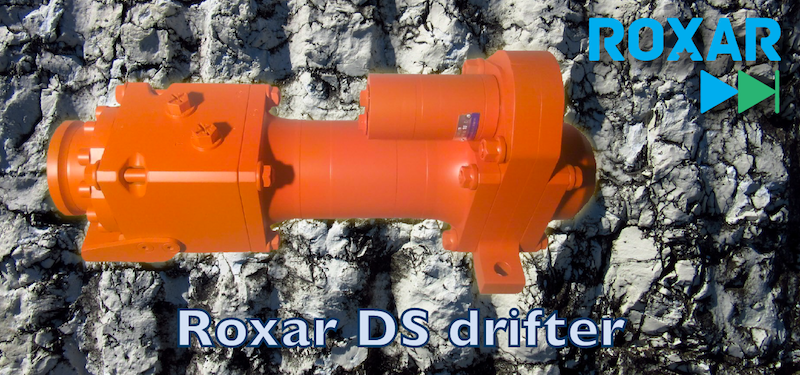

Roxar DS Drifter
Roxar DS hard rock drifter Features
Rotary percussive rock drill for holes up to 45mm
Shank Adapters: H22 / H25 FEMALE
Percussion: High Energy per blow / Blow Frequency up to 70 Hz
Weight: 45kg
Roxar DS hard rock drifter Main Applications
Dimensional stones,
Anchoring,
Bolting,
Light drilling attachment.
Roxar DS hard rock drifter Hydraulic Characteristics
Exclusive Active Dampening System
Percussion flow rate: 30-50 l/min
Percussion pressure: auto-regulated
Rotation flow rate: 10 to 20l/min
Air Flushing

Roxar hard rock drifter - DS rotary percussive drilling, High Performances 8kW Hydraulic Rock-drill
Roxar hard rock drifter DS – Reverse percussion as a standard – Efficient & Reliable hydraulic striking system – Compact dimensions & self-regulation of pressure for easy fitting on any machine – Modular system for wide choice of rotation motors – Heavy duty front head – Modular rear end permits coupling on any side

Roxar DS hard rock drifter featuring unique hydraulic system
Roxar DS hard rock drifter senses rock hardness, recovers and dampens the rebound energy, Controls piston alternative motion, continuously adjusts the strike energy & frequency, Keeps the drill string & bit in constant contact with the rock for maximum shock-wave transmission.
Contact us for more information
Contact us for more information about Roxar Products

Low operation cost
Roxar rock drill DS

High Rate of Penetration
Roxar rock drill DS

Plug & Play Drifter
Roxar rock drill DS

Long service intervals
Roxar rock drill DS

Reliable and durable
Roxar rock drill DS

Reverse Percussion
Roxar rock drill DS

Made in Europe
Roxar rock drill DS
Roxar rock drill

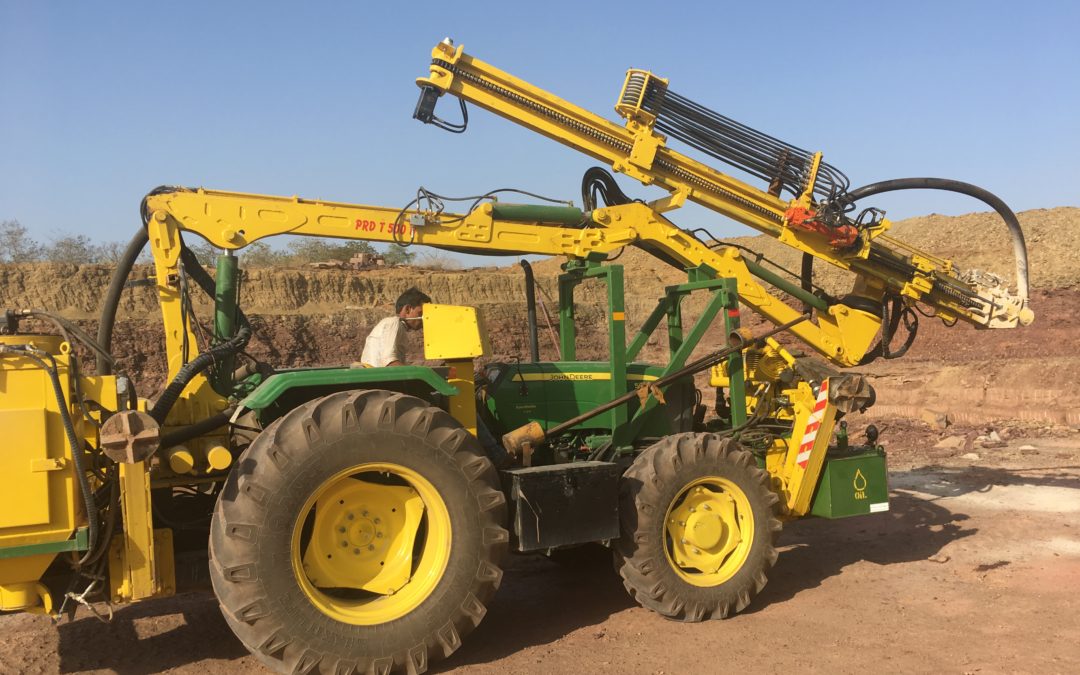

A rock drill is fitted on a carrier like a rock drilling machine, a mining drilling jumbo, a tunneling jumbo, a crawler drill, different kinds of drill rig, it can even be adapted as an attachment on an excavator, a skid steer or a backhoe loader. The main equipments for Roxar rock drill application are jumbo drill, crawler drill, bolter drills, longhole drill, shaft jumbo drill, surface drill, wagon drill, tunneling drill, drilling attachment. Roxar drifter are optimized for Underground Mining, Bolting, Tunnelling as well as Surface Drilling, anchoring or Special Applications. The drifter is placed on rail (called feed, or rig) that the drill travels on, or drifts. This kind of drilling procedure is also called drifting. The feed is usually attached with a boom to the machine. Roxar drifters can be easily fitted on machines like Atlas Copco, Secoroc, Sandvik, Tamrock, Minemaster, Resemin, MTI, Fletcher, Montabert, Wolf, AMV, Robodrill, CAT, Caterpillar, McDowell, Herrenknecht, Furukawa, FRD, DH Mining, Boart Longyear, Joy, RDH, Terex, and many others! Furthermore, Roxar rock drills spare parts can be adapted on any drifters like Atlas-Copco drifters, Secoroc drifters, Sandvik drifters, Tamrock drifters, Montabert drifters, Doofor drifters, TEI drifters, Eurodrill drifters, Furukawa drifters, Boart Longyear drifters, SECOMA drifters, Hydrastar drifters, LHS drifters, Cop drifters, Joy drifters, Cop1838, Cop1238, Cop3038, HC109, HC50, HC40, HC110, HC120, HC158, HC170, HC220, HC20, HC25, HC95, HLX5, HC112, HD1001, HD1002, and many others!
In a drifter, the percussive system strikes the drill steel, at several thousand blows per minute, while the rotation drives the drill string at several hundreds rounds per minute. Combined together, these functions enable drilling holes into rock. The resulting broken material called cuttings is then pushed up from the bottom of the hole by means of pressurized air or water, this process is called flushing. The hydraulic power of the carrier is used in order to move the hydraulic drifter piston. In Roxar hydraulic drifters, the piston moves up and down at very high frequency and hits the shank adapter, the blow energy and frequency is automatically adapted to the drilling conditions. This cyclical piston movement generates powerful and destructive shock waves transmitted to the rock through the drill string. Roxar unique hydraulic system has improved the rock drill technology and allows a better efficiency of the drilling operations. Hydraulic drifters are often referred to as “rock drills”, “hydraulic top hammers”, “roto-percussion drills”, “hoe rams” or “hoe rammers.” These terms are popular and commonly used amongst drilling / quarry / mining workers.
