Roxar FD30 hard rock drifter Features

Rotary percussive rock drill for holes up to 115mm

Shank Adapters: R38/R32/T38

Percussion: Energy per blow 300 Joules / Blow Frequency 60 Hz

Rotation: Max Torque 800 Nm / Max Speed 300 rpm

Weight: 164kg

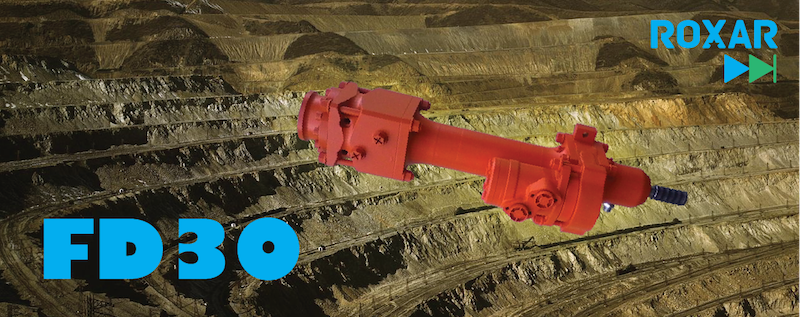

Roxar FD30 hard rock drifter
Main Applications

Mining and Tunneling,

Surface drilling,

Quarry Blast Holes,

Heavy drilling attachment.

Roxar FD30 hard rock drifter Hydraulic Characteristics

Percussion flow rate: 80-100 l/min

Percussion pressure: auto-regulated

Rotation flow rate: 40l

Flushing: Air or Water

Reverse percussion

Roxar hard rock drifter - FD30 rotary percussive drilling, High Performances 30kW Hydraulic Rock-drill

Roxar hard rock drifter - FD30 rotary percussive drilling, High Performances 30kW Hydraulic Rock-drill

Roxar hard rock drifter FD30 – Reverse percussion as a standard – Efficient & Reliable hydraulic striking system – Compact dimensions & self-regulation of pressure for easy fitting on any machine – Modular system for wide choice of rotation motors – Heavy duty front head – Modular rear end permits coupling on any side

Roxar FD30 hard rock drifter, High Performances 30kW Hydraulic Rock-drill

Roxar FD30 hard rock drifter featuring unique hydraulic system

Roxar FD30 hard rock drifter senses rock hardness, recovers and dampens the rebound energy,
Controls piston alternative motion,
continuously adjusts the strike energy & frequency,
Keeps the drill string & bit in constant contact with the rock for maximum shock-wave transmission.
