Roxar FD16 hard rock drifter Features

Rotary percussive rock drill for holes up to 76mm

Shank Adapters: R32/R38/T38

Percussion: Energy per blow 180 Joules / Blow Frequency 50 Hz

Rotation: Max Torque 460 Nm / Max Speed 340 rpm

Weight: 156kg

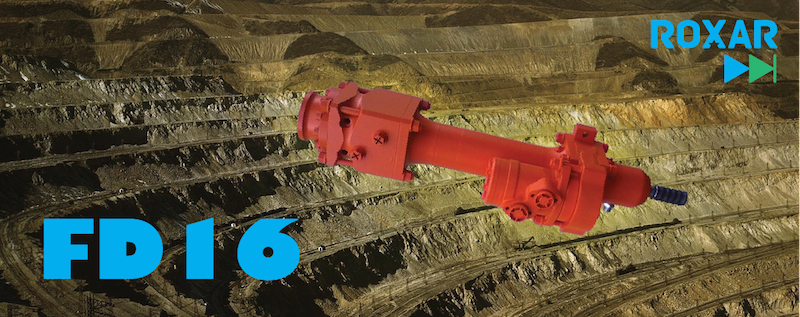

Roxar FD16 hard rock drifter
Main Applications

Mining and Tunneling,

Surface drilling,

Heavy drilling attachment.

Roxar FD16 hard rock drifter Hydraulic Characteristics

Percussion flow rate: 50-80 l/min

Percussion pressure: auto-regulated

Rotation flow rate: 40l

Flushing: Air or Water

Reverse percussion

Roxar hard rock drifter - FD16 rotary percussive drilling, High Performances 16kW Hydraulic Rock-drill

Roxar hard rock drifter - FD16 rotary percussive drilling, High Performances 16kW Hydraulic Rock-drill

Roxar hard rock drifter FD16 – Reverse percussion as a standard – Efficient & Reliable hydraulic striking system – Compact dimensions & self-regulation of pressure for easy fitting on any machine – Modular system for wide choice of rotation motors – Heavy duty front head – Modular rear end permits coupling on any side

Roxar FD16 hard rock drifter, High Performances 16kW Hydraulic Rock-drill

Roxar FD16 hard rock drifter featuring unique hydraulic system

Roxar FD16 hard rock drifter senses rock hardness, recovers and dampens the rebound energy,
Controls piston alternative motion,
continuously adjusts the strike energy & frequency,
Keeps the drill string & bit in constant contact with the rock for maximum shock-wave transmission.
